工艺介绍
Financial Payment Antennas
FPC工艺 / 绕线 / 印刷三大工艺，适配银行卡、商圈联名卡、会员卡片、银行卡片、信用卡等众多智能产品NFC方案
Etched / wire-wound / printed antennas for bank cards, mall cards & membership cards.
一、按天线工艺分类
1. Classification by Manufacturing Process

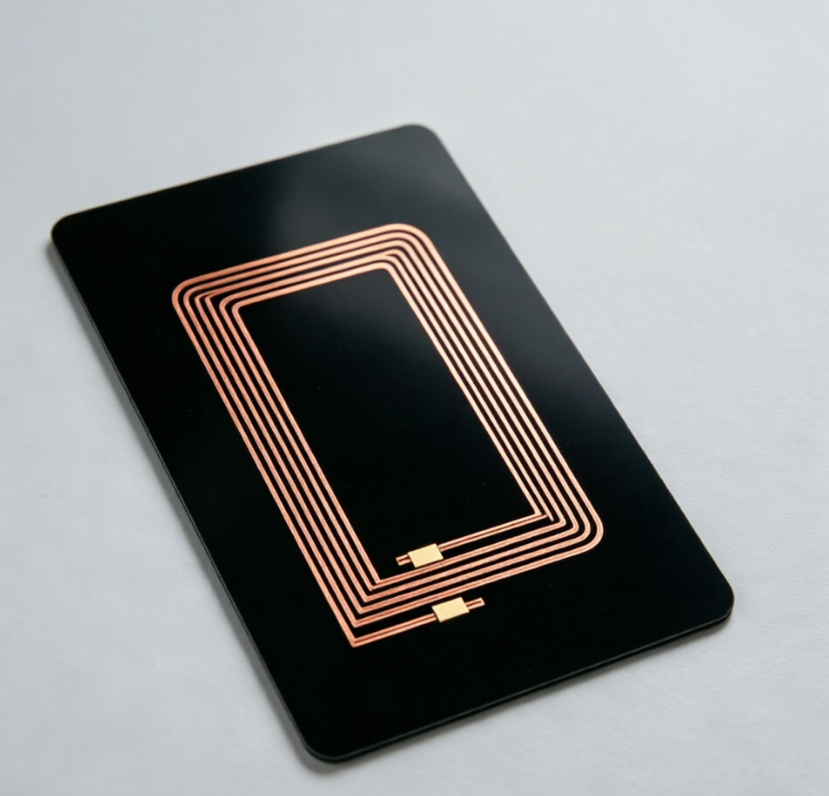

FPC工艺
Etched Antenna
柔性、轻薄、可弯曲、高精度、适合小型化、易于集成、一致性好、耐弯折，轻薄柔韧，完美契合NFC天线。
High flatness & consistent impedance, ideal for premium membership & souvenir cards.

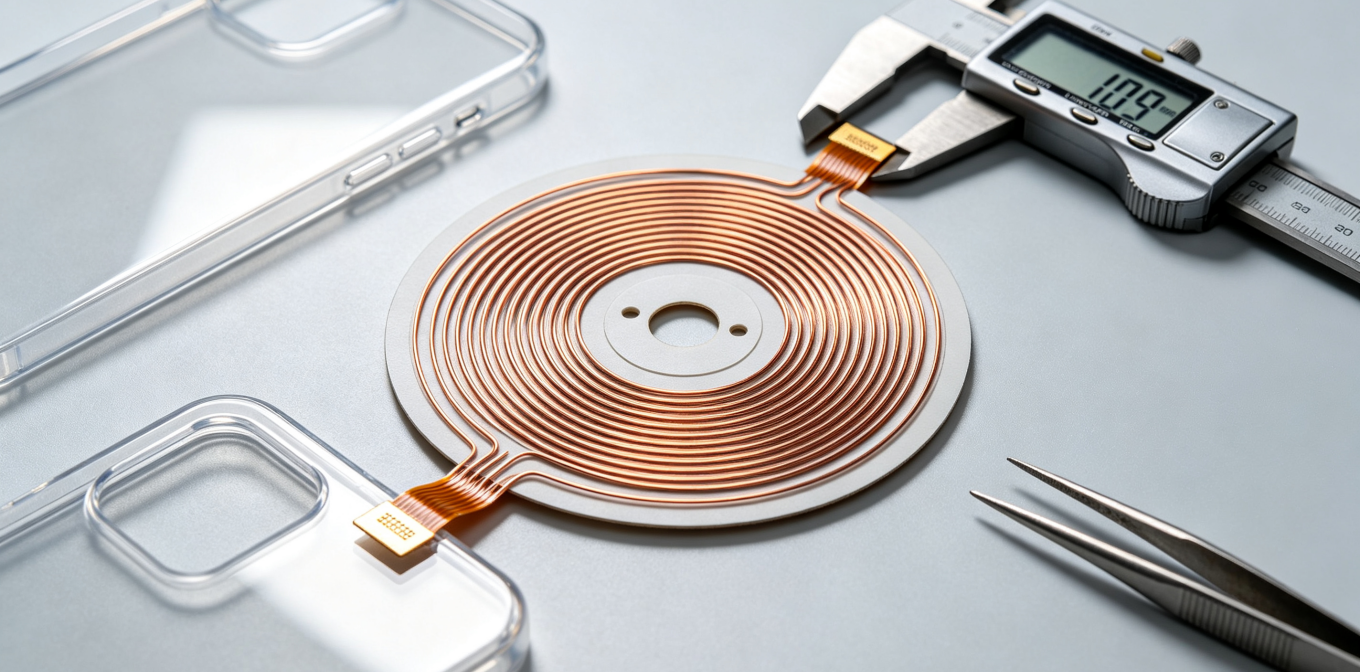

绕线天线
Wire-Wound Antenna
高Q值低损耗，精密绕线，高效快充，散热强，薄型易集成。适用于手机等类似的智能产品进行无线充电。
Firm solder joints resistant to lamination, widely used for bank & student ID cards.

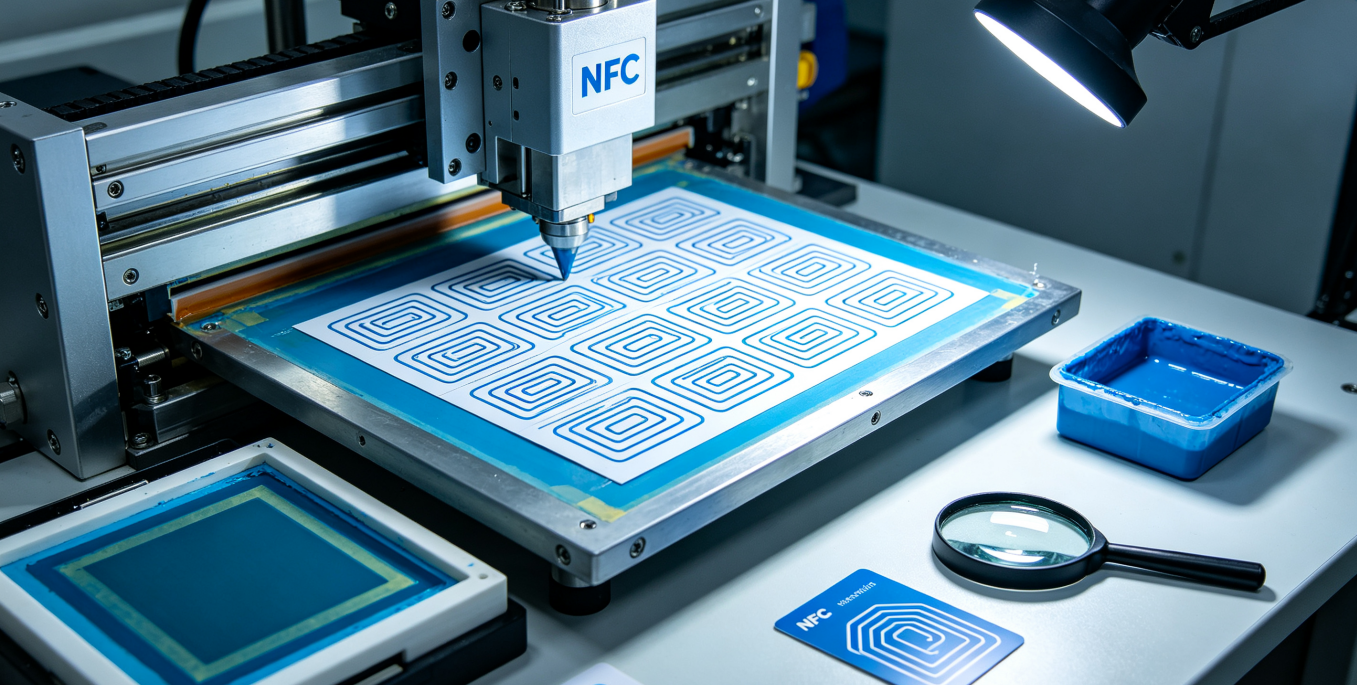

印刷天线
Printed Antenna
成本低、量产速度快，适合大批量便民卡、活动临时卡片。
Low cost & fast production for mass citizen cards & event temporary cards.
二、天线设计研发能力
2. Antenna R&D Capability

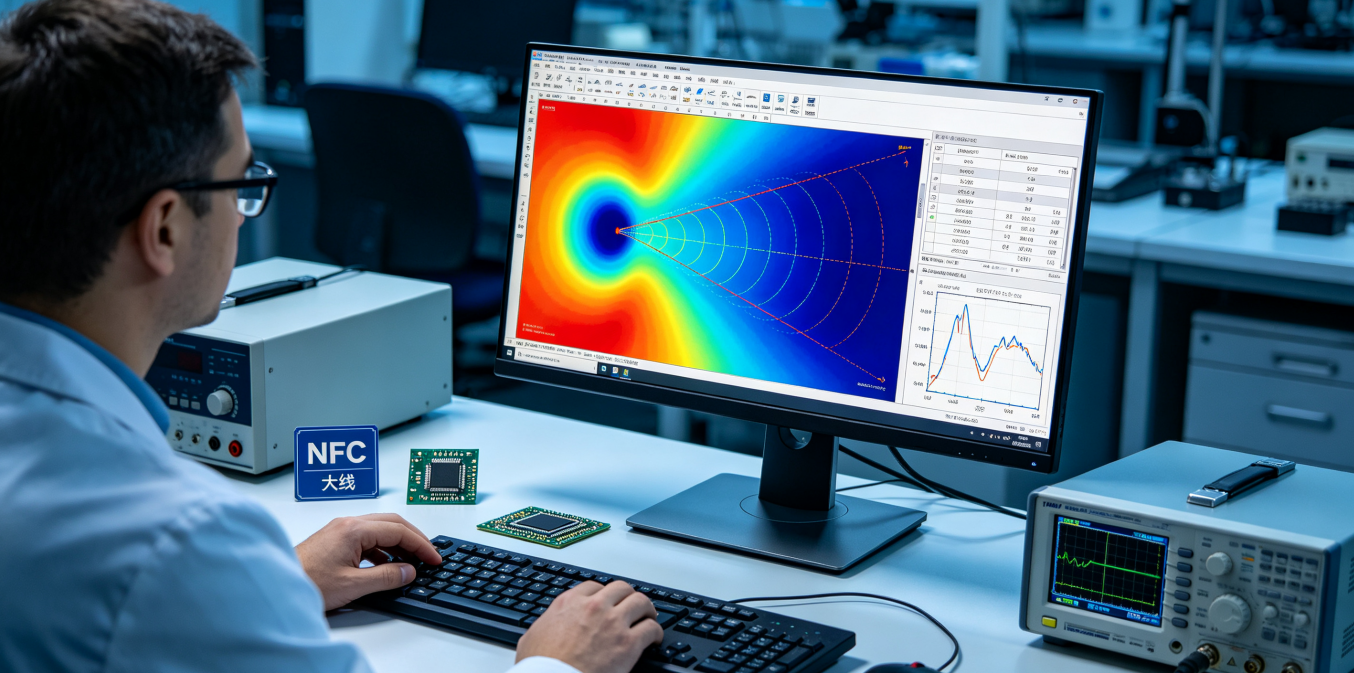

射频电磁场仿真
RF Simulation
采用射频仿真工具预判线圈性能，提前规避读卡弱、谐振偏移问题。
RF simulation predicts coil performance to avoid weak reading & resonance shift.

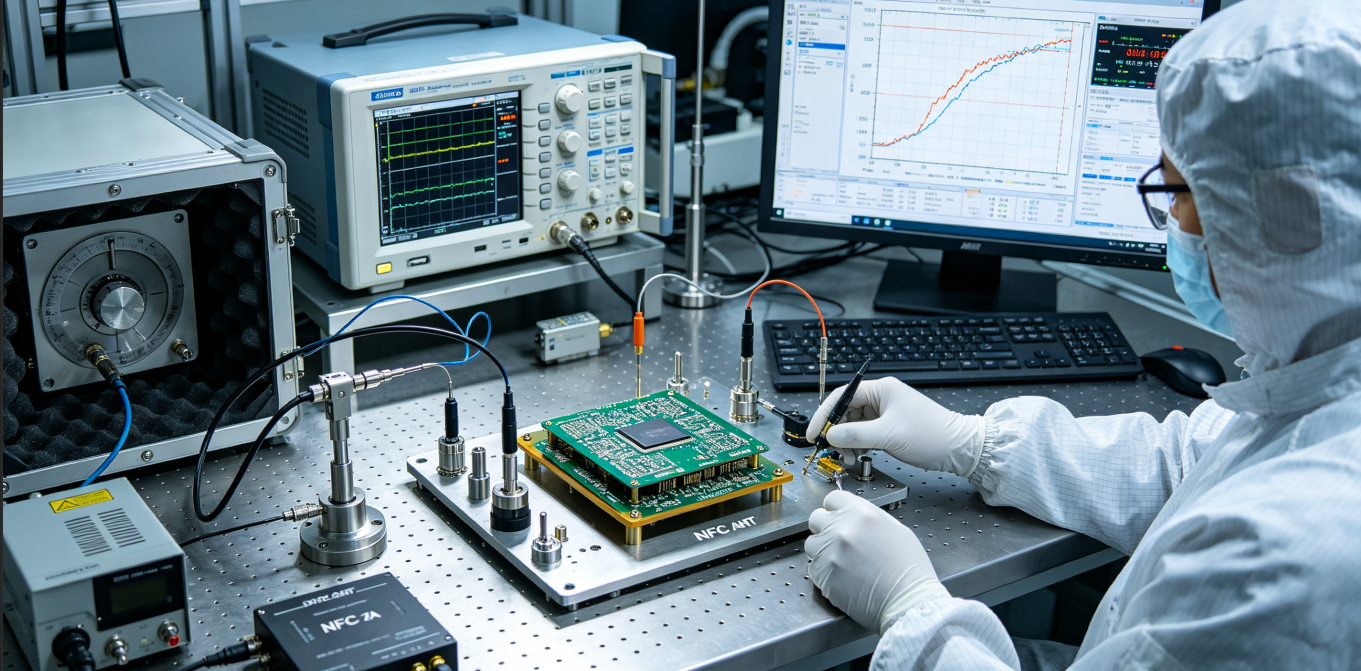

芯片模块联合调谐服务
Chip & Antenna Co-tuning
根据客户所用芯片调试天线参数，保证读卡距离均匀稳定。
Tune antenna parameters per customer chips for stable & unified reading range.
金属卡抗屏蔽方案
Anti-Shielding for Metal Cards
镂空线圈结构削弱金属屏蔽效果，解决金属卡片读卡失灵问题。
Hollow coil design reduces metal shielding to fix unreadable metal cards.
定制设计闭环流程（6步标准化）
6-Step Custom Design Workflow
芯片+卡片图纸Demand Input
Chip & Card Drawing
样品申请通道
Sample Application
付费小批量打样，3个工作日交付样品，支持客户自备芯片匹配测试。
Paid sampling service, samples ready within 3 working days, support customer-provided chips.
量产交付保障
Mass Production Delivery
长期合作多家正规代工厂，可灵活切换产线，保障旺季订单交付。
Cooperate with multiple OEM factories to switch production lines flexibly for peak orders.
工程师技术对接
Engineer Technical Support
射频工程师直接对接项目问题，快速排查读卡异常、谐振故障。
RF engineers connect directly to troubleshoot reading & resonance problems quickly.
